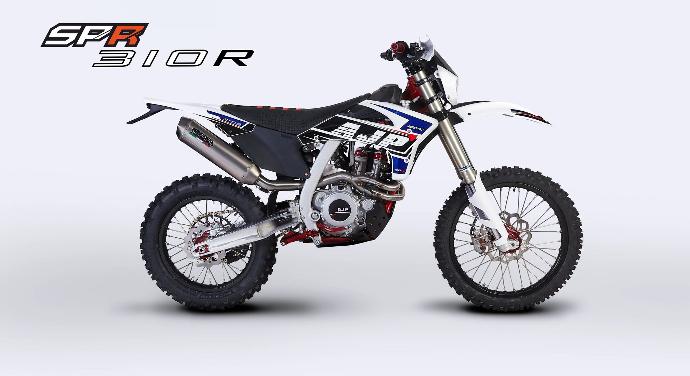

SPR310R

* Images may not depict models to Australian specifications.


POWER FOCUSED

The SPR 310R is a performance-focused 4-stroke machine, offering strong torque, extreme handling, and agility. Its reliable fuel-injected mono-cylinder allows for easy maintenance, and it features a power-focused 6-speed transmission and progressive suspension setup by ZF Sachs® .

ENGINE

The SPR 310R's DOHC 297.6cc liquid-cooled engine offers significant power and torque in a lightweight package, delivering flickable handling and explosive attitude. Its precise Athena® ECU provides riders with full control over the machine, anytime, anywhere.

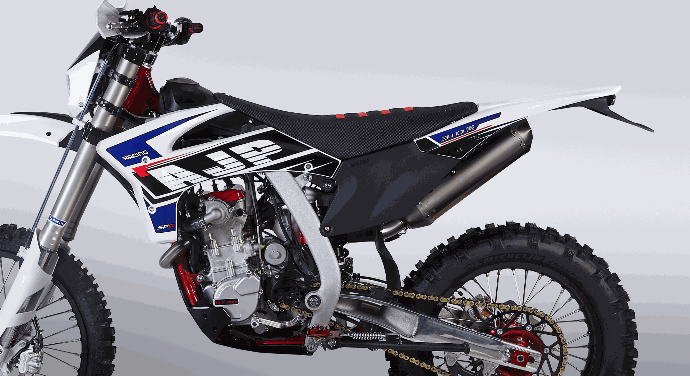

FRAME AND CHASSIS

AJP frames are expertly crafted in-house using a hybrid steel-aluminum system and flexible geometry, providing reliable and performance-oriented riding for all levels. The SPR line meets championship racing standards, offering maxed-out throttle response and playful flick ability.

SUSPENSION AND BRAKES

The 310R's ZF Sachs® Ø48mm suspension, with a 300mm travel and closed cartridges, provides confidence and tune-ability for any ride. Its intuitive tuning and maintenance-free technology ensure optimal suspension performance.

ENGINE

TYPE

Single-cylinder - 4S

SYSTEM

DOHC - 4v

COOLING SYSTEM

Liquid

DISPLACEMENT

297.6cc

BORE X STROKE

83 x 55mm

STARTER

Electric

FUEL SYSTEM

ATHENA GET® Injection System Ø45mm

CLUTCH

Oil bath, multi-disc

TRANSMISSION

6 speed


BRAKES

FRONT CALIPER

BREMBO® Dual Piston

FRONT DISC

Ø260mm

REAR CALIPER

BREMBO® Single Piston

REAR DISC

Ø220mm



CHASSIS

FRAME

Aluminium-steel composite

WHEELBASE

1450mm

SEAT HEIGHT

960mm

GROUND CLEARENCE

355mm

FUEL TANK

9.5L



WHEELS

FRONT

90/90 21"

REAR

140/80 18"


SUSPENSION

FRONT

ZF SACHS® Ø48mm Double Closed cartridge fork

FRONT TRAVEL

300mm fully adjustable

REAR

ZF SACHS® prog. system w/ reservoir

REAR TRAVEL

300mm
